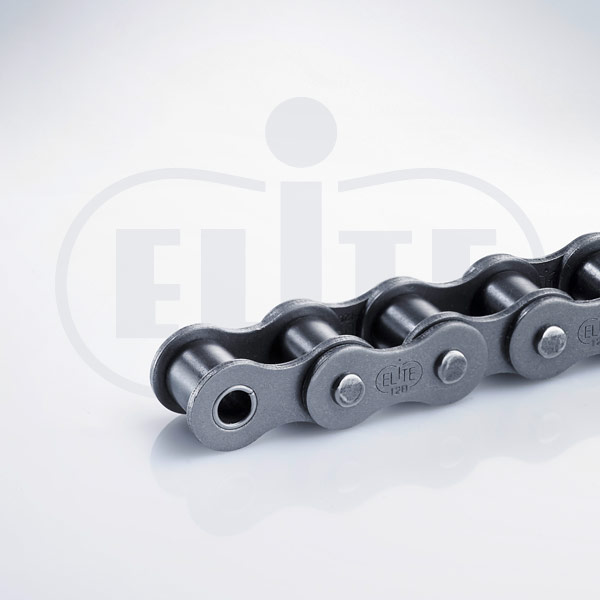

H series chains are generally made with the same pin materials
as standard roller chains. However, their major advantage
is that they provide higher wear resistance and greater tensile
strength than standard chains, while retaining virtually the
same breaking strength.
Specifications
UPC Code |
N/A 847648016143 |
Type |
N/A H Series |
Chain Construction |
N/A Riveted |
Model |
N/A 120-1 H |
Chain Size |
N/A 120 |
Number of Strands |
N/A 1 |
Tensile Strength |
N/A 2 MPa |
FU - Min. Tensile Strength |
N/A 125.00 kN |
f - Bearing Area |
N/A 4.13 cm² |
Description 1 |
N/A 120H RIV 10FT ELITE |
Description 2 |
N/A CHAIN |
Norm |
N/A ISO 606 (DIN 8188) |
q - Weight Per Meter |
N/A 6.60 kg/m |
Weight |
N/A 18.42 kg |
Dimensions
Length |
N/A 3.05 m |
Width |
N/A 55.00 mm |
Pitch |
N/A 38.10 mm |
Roller Width |
N/A 25.22 mm |
h2 max. - Height Inner Plate |
N/A 36.20 mm |
Ti - Plate Thickness |
N/A 5.60 mm |
To - Plate Thickness |
N/A 5.60 mm |
d1 max. - Roller Diameter |
N/A 22.23 mm |
b1 min. - Width between Inner Plates |
N/A 25.22 mm |
d2 max. - Pin Diameter |
N/A 11.11 mm |
b4 - Pin Length |
N/A 55.00 mm |
b7 - Max. Add. Length of Connecting Link |
N/A 6.60 mm |
b2 max. - Total Width Inner Link |
N/A 37.18 mm |
